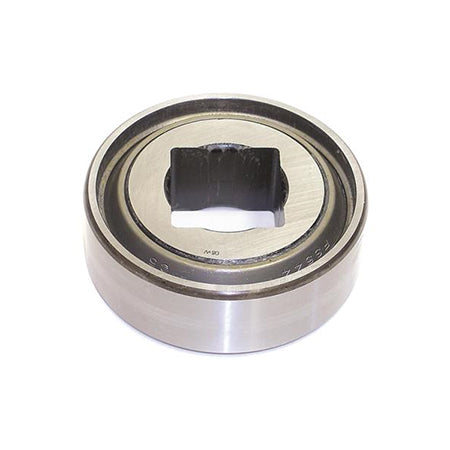

Timken 1-1/8" Square Disc Bearing
$6640
SKU: 308-W208PP5
Disc Harrow Bearing
Sealed / Cylindrical O.D. / Square Bore
- Designed for environments where severe contamination is present, such as agricultural tillage equipment
- Use of Tri-Ply Seal bearings simplifies housing designs and their extra inner ring width provides greater support on the shaft
| Bearing I.D. | 1-1/8 Inch |
|---|---|
| Bearing O.D. | 80mm |
| Bearing Type | Disc Bearing |
| Bore Shape | Square |
| Brand | Timken |
| Greasable / Sealed | Sealed |
| Inner Ring Width | 1.438 Inch |
| Outer Race Shape | Cylindrical |
| Outer Ring Width | .709 Inch |
| Product Category | Disc Bearing |
| Make | Type | Model |
|---|---|---|
| John Deere | Disc Harrow | 2620, 2623, 2625, 2630, 2633, 2635, 637 |
| John Deere | Hipper | 70 |
| John Deere | Ripper | 2700, 955 |
| John Deere | Vertical Tillage | 2623VT, 2633VT |
Replaces No.
- 481202
- 16-11-176
- ADC208TT5
- 963889R91 (CNH)
- JD9350 (JOHN DEERE)
- H747139 (CNH)
- 2251
- B8018
- 622-057
- 42794
- 7950006
- 7992
