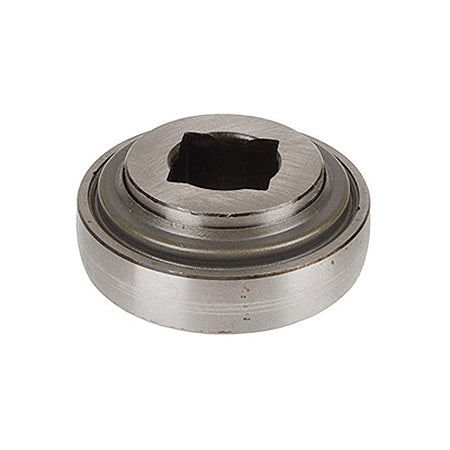

Timken 1" Square Disc Bearing
$7591
SKU: 308-W208PPB6
Disc Harrow Bearing
Sealed / Spherical O.D. / Square Bore
- Designed for environments where severe contamination is present, such as agricultural tillage equipment
- Use of Tri-Ply Seal bearings simplifies housing designs and their extra inner ring width provides greater support on the shaft
| Bearing I.D. | 1 Inch |
|---|---|
| Bearing O.D. | 80mm |
| Bearing Type | Disc Bearing |
| Bore Shape | Square |
| Brand | FOR UTILITY DISCS |
| Greasable / Sealed | Sealed |
| Inner Ring Width | 1.438 Inch |
| Outer Race Shape | Spherical |
| Outer Ring Width | .709 Inch |
| Product Category | Disc Bearing |
| Make | Type | Model |
|---|---|---|
| Amco | Disc Harrow | LFB2, LFBD2, LTB2 |
| Bush Hog | Rotary Cutter | 1424, 1426, 1432, 1436, 1438, 1439 |
Replaces No.
- AS4509B
- T15580
- 142263
- 834367M1 (AGCO)
- PMDS208TT6
- T15820
- 11079
- ADS208TT6
- 1025130M1 (AGCO)
- 834367M91 (AGCO)
- A142263BH
