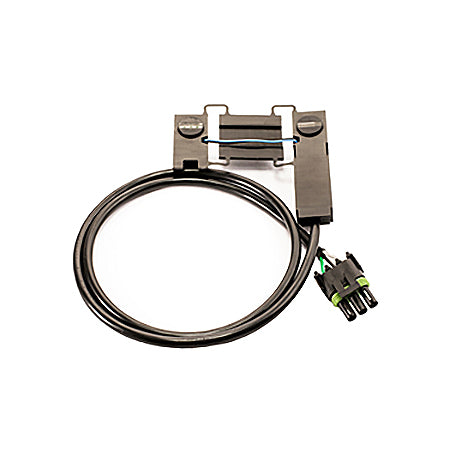

Standard Rate LED Seed Sensor "Yellow Sensor" (For John Deere)

SMA standard-rate analog LED seed sensor, commonly called the yellow sensor. Four LEDs and four photo receptors create a uniform light curtain to avoid blind spots.

Specifications and compatibility

• Fits seed tubes with a 3/4-inch opening.
• Each sensor is individually tested to 99.2% seed count accuracy in a random test.
• Compatible with most planters, seeders and OEM monitors; confirm your equipment's connection and sensor requirements.

Connector and wiring

3-pin Delphi Weather Pack connector.

• Pin A: green wire, signal
• Pin B: black wire, ground
• Pin C: red wire, supply voltage

John Deere grain drill applications

1530 and 1535.

John Deere planter applications

1700, 1705, 1710, 1720, 1725, 1740, 1750, 1760, 1770, 1780, 1790, DB44, DB58, DB60, DB66, DB80 and DB90.

Monosem applications

NG Plus Small Grain.

Replaces Numbers

John Deere AA41595, AA61908, AA58293 and AA58295; TPAA61908, TP-AA61908 and 452440891AS1.
