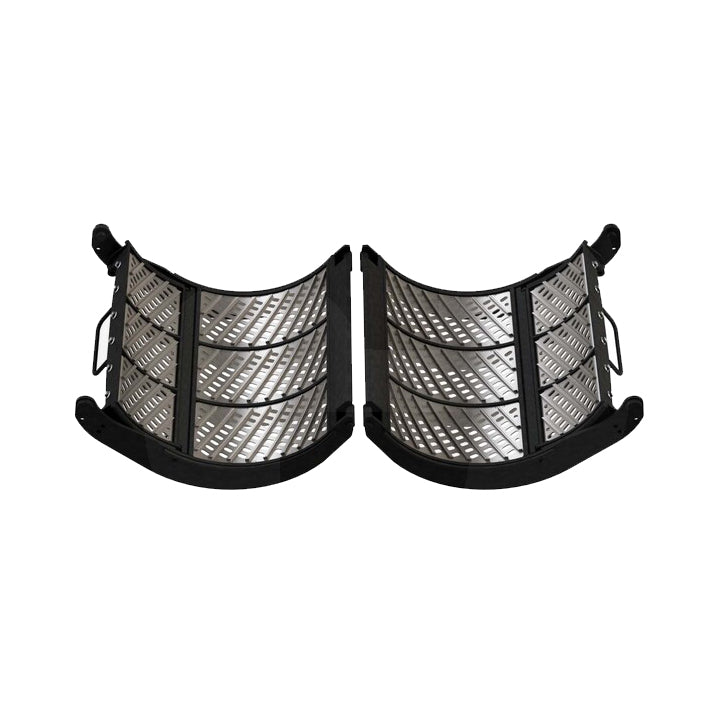

Kondex KX7 Concave Kit - NH Tough Thresh

$8,83785
SKU: 716-091

Kondex KX7 Concave kit for New Holland CR Series combines with dual rotors.

This kit is ideal for use in small grains such as wheat, oats, rye, barley, and other cereals which provides upgraded performance as compared to OEM concaves; especially when harvesting in extra tough conditions. It is important to note that this kit includes all Max-Thresh boxes and is the most aggressive option possible. To make this configuration less aggressive it would be possible by switching some of the Max-Thresh to Max-Round. The concave kit comes disassembled such that installation begins with the black frame assemblies into the machine. Once the black frames are installed each of the boxes are to be bolted in. Instructions provided with the kit.

This concave kit consists of the following components:

  • (1) 716-085 frame assemblies (2 pieces makeup this sub-kit number)
  • (3) BB8-X12 (RH, ADJ FRAME Max-Thresh positions 1-3)
  • (3) BB8-X11 (RH, MAIN FRAME Max-Thresh positions 1-3)
  • (3) BB8-X22 (LH, ADJ FRAME Max-Thresh positions 1-3)
  • (3) BB8-X21 (LH, MAIN FRAME Max-Thresh positions 1-3)

Replaces New Holland No. 47444229, 47449709, 47449704, 47449700

Fits New Holland Models: CR8.90, CR9.80, CR9.90, CR10.90, CR980, CR8080, CR890, CR9080, CR9090, CR970, CR9070
