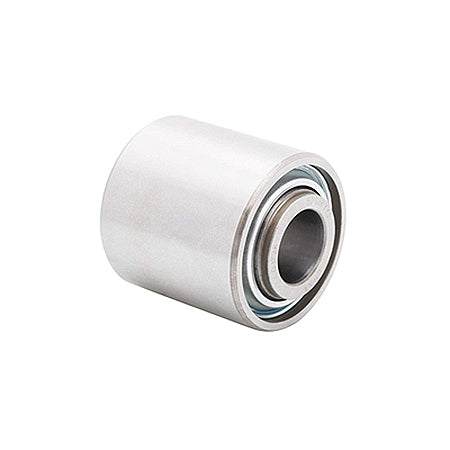

AgSmart Double-Row Gauge & Closing Wheel Bearing - 5/8" ID

$1557
SKU: 851-SMA5203PP2

AgSmart double-row bearing for closing and gauge wheels, with a 5/8-inch inside diameter (approximately 16 mm) and three lip seals.

Specifications

  • Round bore: 5/8-inch ID (approximately 16 mm).
  • Outside diameter: 1.57 inches / 40 mm.
  • Inner ring width: 1.734 inches.
  • Outer ring width: 1.535 inches.
  • Three lip seals.

Drill and air seeder applications

  • Case IH: SDX30, SDX40 air seeders; 500, 500T Precision Disk drills.
  • John Deere: Gauge wheels on 1530 and 1535 with XP; rubber closing wheels on 1530 and 1535.
  • John Deere: Cast closing wheel arm on 1560, 1565, 1590, 1690, 1835, 1860, 1895 and 1990 grain drills.
  • Great Plains: 2-inch x 13-inch and 3-inch x 13-inch press wheels, 1997 and after with steel wheel halves; 2.5-inch x 16-inch, 3-inch x 16-inch and 4.5-inch x 16-inch gauge wheels on 10H, 15 and 25 series drills, 1998 and after with 15-inch openers.
  • Hiniker: Gauge wheel on late 4200 air seeders.
  • New Holland: P2080, P2085 Disk drills.
  • CrustBuster, Krause, Landoll, Sunflower, Sukup: Grain drill gauge wheels.

Planter applications

  • Case IH: Gauge wheel on 1200 series, serial number CBJ0001611 and up.
  • John Deere: All gauge wheels on XP and XP Pro; rubber closing wheels on MaxEmerge Plus, Pro, XP and XP Pro.
  • Kinze: Gauge wheel and closing wheel bearing.
  • Great Plains: 2.5-inch x 16-inch, 3-inch x 16-inch and 4.5-inch x 16-inch planter gauge wheels.
  • Martin: Spading-closing wheels on late 1700 with MaxEmerge Plus and XP; John Deere 7000–7100; Kinze; White 6000 and 8000.
  • Monosem Plus: Gauge wheels on late models and closing wheels.
  • New Holland: SP280, SP380, SP480, SP580, all serial number PNL001065 and up.
  • White: Gauge wheels on 8000 and 9000 series; rubber or cast dual closing wheels on late 6000, 8000 and 9000.

Marker blade applications

John Deere four-bolt notched marker blades on 1700 and DB series planters; 7200, 7240, 7300 and 7340 built in 1995 and after; 750, 1520, 1530, 1535, 1560, 1565 and 1590 drills.

Applicator applications

John Deere 2510H gauge wheel and cast sealing wheel.

Replaces Numbers

  • 5203KYY-2, AG301P.
  • AGCO: 854-003.
  • CNH: 324461A1, 306007A1.
  • Kinze: GA6171.
  • Great Plains: 822-170C.
  • John Deere: AN212132.
