AgSmart 7/8" Hex Bore Bearing For Planter
$3138
SKU: 514-JD22097

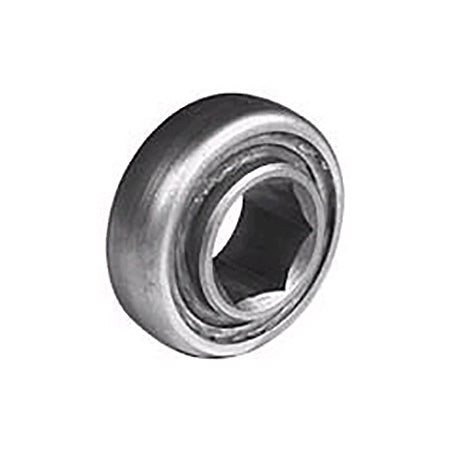

AgSmart ⅞-inch hex-bore seed transmission bearing with a spherical outer race for compatible John Deere planters.
Specifications
- Bore: ⅞-inch hex.
- Outside diameter: 2.04 inches / 52 mm.
- Inner ring width: 0.895 inch.
- Outer ring width: 0.631 inch.
- Outer race shape: spherical.
- Bearing type: specialty agricultural.
Installation reference
Uses flange pair 851-F52TR. For the flat outer ring version replacing AA28271, order 514-JD28271.
John Deere planter applications
1700, 1705, 1710, 1715, 1720, 1725, 1730, 1735, 1750, 1755, 1760, 1760NT, 1765, 1765NT, 1770, 1770NT, 1775, 1775NT, 1780, 1785, 1790, 1795, 7000, 7000 Series, 7100, 7200, 7240, 7300 and 7340.
DB120, DB37, DB41, DB44, DB53, DB55, DB58, DB60, DB62, DB66, DB74, DB80, DB83, DB88 and DB90; DR12, DR16, DR18, DR24 and DR8T; MaxEmerge, MaxEmerge 2, MaxEmerge Plus, MaxEmerge XP and MaxEmergeP.
Replaces Numbers
- John Deere AA22097 and JD9260.
- Kinze G2100-03.
- Great Plains 822-119C.
- 205KRRB2 and F136.
