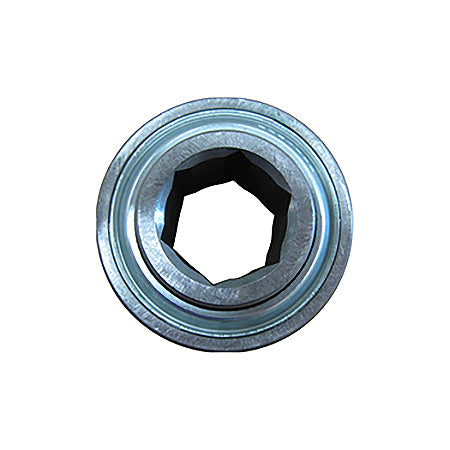

AgSmart 7/8" Hex Bore Bearing (For John Deere Planter)

AgSmart ⅞-inch hex-bore bearing for seed transmission and wheel support applications on compatible John Deere planters. Features a cylindrical outer race.

Specifications

• Bore: ⅞-inch hex.
• Outside diameter: 2.04 inches / 52 mm.
• Inner ring width: 0.895 inch.
• Outer ring width: 0.65 inch.
• Outer race shape: cylindrical.
• Bearing type: specialty agricultural.

Bearing comparison

Size specifications are similar to 205KRR2, but this bearing has a narrower inner ring. The 205KRR2 has a 1-inch-wide inner ring; this bearing's specified inner ring width is 0.895 inch.

John Deere planter applications

1700, 1705, 1710, 1715, 1720, 1725, 1725NT, 1730, 1735, 1750, 1755, 1770, 1780, 1785, 1790, 7000, 7000 Series, 71 Flexi, 7100, 7200, 7240, 7300 and 7340.

DB120, DB37, DB41, DB44, DB53, DB55, DB58, DB60, DB62, DB66, DB74, DB80, DB83, DB88 and DB90; DR12, DR16, DR18, DR24 and DR8T; MaxEmerge, MaxEmerge 2 and MaxEmerge Plus.

Replaces Numbers

John Deere AA28271.
