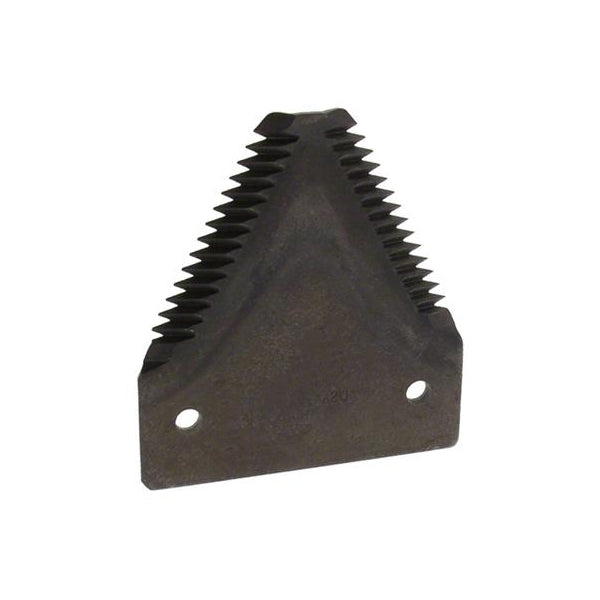

3" Black Section - 7 TPI (for CNH & MacDon)
$205
$218
SKU: 491-231471
These Back Hardened sections are made from USA melted high carbon steel with induction heat treatment incorporated on the three major areas of wear a sickle section is exposed to. Sickle section cutting edges along with the back side of a sickle section are exposed to high wear during operation.
Section back hardening is key for dependable high performance cutting in abrasive conditions.
| Fastener Size | 7/32 x 5/8 |
|---|---|
| Hole Spacing | 2.125 Inch |
| Length | 3-1/4 Inch |
| Section Finish | Black |
| Section Thickness | Extra Heavy |
| Serration Profile | Top Serrated |
| Serration Spec | Extra Coarse - 7 Tooth |
| Shape Series | 3 |
| Width | 3 Inch |
Â
| Make | Type | Model |
|---|---|---|
| Case IH | Combine Header | 1042, 1052, 2042, 2052, 2062, 2142, 2152, 2162 |
| John Deere | Auger Header | 140, 140A, 160A, 180A |
| John Deere | Combine Header | 160 Series, 400D Series |
| John Deere | Windrower | 590 |
| MacDon | Auger Header | 910, 912, 920, 922, 930, 942, A30D, A30S, A40D |
| MacDon | Combine Header | 960, 962, 963, 973, 974, D125, D130, D135, D140, D145, D50, D60, D65, FD125, FD130, FD135, FD140, FD145, FD70, FD75 |
| MacDon | Mower Conditioner | 4000, 5000, 5010, 5020 |
| MacDon | Windrower | 3000, 3020, 7000, 741, 9000, 9000 Series, 910, 912, 920, 922, 930, 941, 942, 960, 962, 972 |
| New Holland | Combine Header | 84C, 86C |
Replaces No.
- 102053 (MACDON)
- 1071707M91 (AGCO)
- AFH209268 (JOHN DEERE)
- 87422066 (CNH)
- 158516 (MACDON)
- 118492 (MACDON)
- 47678533 (CNH)
- 118493 (MACDON)
- 174845 (MACDON)
- 231-471
