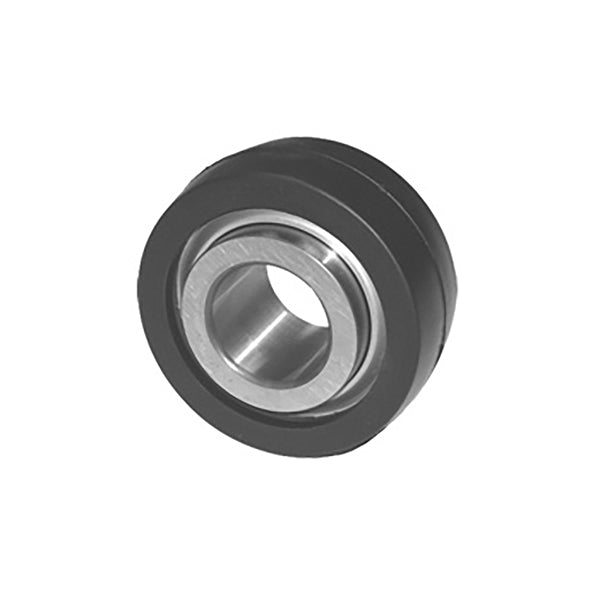

1-1/2" Rubber Mounted Disc Bearing (for Krause)
Fits 1590, 1900, 2100, 2200, 3900, 4900 Series, Dominator Front Gang.
Cushioned Outer Ring disc bearing assemblies consist of a heavy duty disc bearing and a special configuration separable rubber housing. These assemblies are designed for use in two-piece cast housings which when bolted together at mounting capture the bearing assembly in the appropriate position between each half. The extension on the rubber housing with the thru hole is intended to match up with a relubrication hole in one of the casting halves. Knurled surfaces on the O.D. of the outer ring are gripped by the rubber, which is compressed at mounting, to prevent outer ring movement thus assuring the relube hole in the outer ring stays in alignment with the rubber housing grease hole. This permits relubrication of the bearing through a grease fitting installed in the cast housing.
| Bore Shape | Round |
|---|---|
| Bearing I.D. | 1-1/2 Inch |
| Bearing Type | Disc Bearing |
| Bore Shape | Round |
| Brand | FOR KRAUSE |
| Disc Bearing Type | Rubber Mounted Outer Ring |
| Greasable / Sealed | Greasable |
| Housing O.D. | 4.00 Inch |
| Housing Width | 1.56 Inch |
| Inner Ring Width | 1.6875 Inch |
| Outer Race Shape | Spherical |
| Product Category | Disc Bearing |
Replaces No.
- 851-SMAGW209PPB22BR
- SMAGW209PPB22BR
- 1927
- GW209PPB22
- P1927110
- SMAGW209PPB22
- Q4008350
- 1927-11-0
- CDS209TTR6P
